Fiber Baling Presses & Automated Baling Systems

For nearly 80 years, AUTEFA Solutions has been developing and manufacturing high-performance fiber baling presses and automated baling systems for the man-made fiber industry. Our industrial balers are designed for the efficient compression and packaging of viscose, polyester and other staple fibers, ensuring consistent bale quality, high productivity and reliable operation.

Our product range includes fully automatic, semi-automatic and manual fiber baling presses, as well as advanced single box and double box baler systems. Combined with automated fiber transport, bale packaging and warehouse logistics, AUTEFA Solutions provides integrated solutions tailored to individual production requirements.

Beyond the textile and man-made fiber industry, our baling technology is also used for pressing pulp in the paper industry and processing filament tow for the cigarette industry. Through modular system design and continuous innovation, we help manufacturers optimize their baling processes, reduce manual handling and achieve efficient material flow throughout the entire production line.



Lift-Box-Compact (LBC) – Double Box Fiber Baling Press

The Lift-Box-Compact (LBC) double box baler is one of AUTEFA Solutions' most successful fiber baling presses, with more than 3,000 units sold worldwide. Proven over decades of industrial operation, this advanced baling system delivers reliable performance, consistent bale quality and efficient processing of a wide range of synthetic and specialty fibers.

The innovative double box system features two separate boxes: one at the pre-press and one at the main press. This configuration ensures precise fiber guidance during compression and bale formation, producing uniform, well-shaped bales even when processing challenging materials such as siliconized fibers, short-cut fibers, low-melt fibers and mineral fibers.

To meet different production requirements, the LBC fiber baling press is available in fully automatic, semi-automatic and manual configurations. Three automatic bale packaging solutions provide additional flexibility, allowing manufacturers to optimize production capacity, operational efficiency and investment costs.

With its proven double box technology and versatile automation options, the Lift-Box-Compact offers a reliable and adaptable baling solution for demanding fiber production environments.

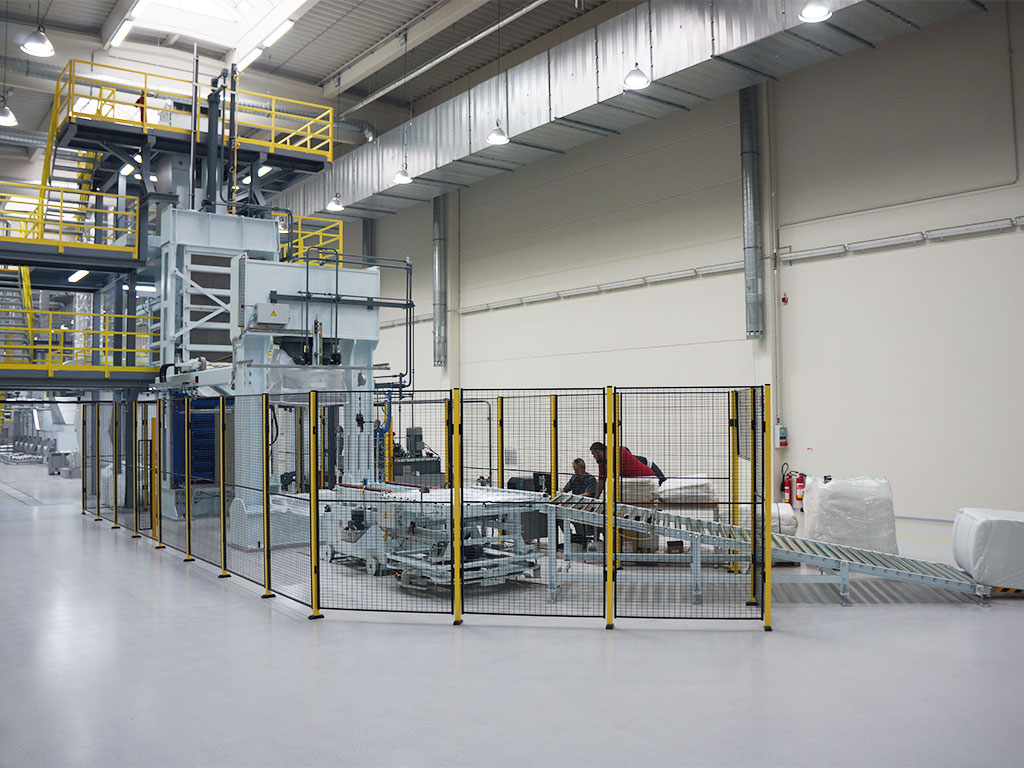

Nonstop-Ultra – Single Box Fiber Baling Press

The Nonstop-Ultra Single Box Baler from AUTEFA Solutions is a fiber baling press designed for fast, efficient and space-saving fiber processing. With a main press force ranging from 150 to 400 tons, this advanced single box baling system combines high production speed with a compact design and gentle fiber handling during the packaging process.

In the pre-press, fibers are compressed into a pre-formed bale, which is then transferred to the main press without a press box. This efficient process ensures consistent bale formation and produces uniform, well-shaped bales while protecting the fiber material throughout the baling process.

The Nonstop-Ultra can be equipped with a fully automatic bale packaging system at the main press, enabling efficient and reliable operation. Depending on material specifications and bale dimensions, the system achieves bale weights of up to 450 kg.

For additional flexibility, the baling press can be extended with a bale removing carriage and an automated bale transport system at any time. Its modular design allows manufacturers to adapt the system to changing production requirements and integrate it into automated fiber processing and logistics lines.

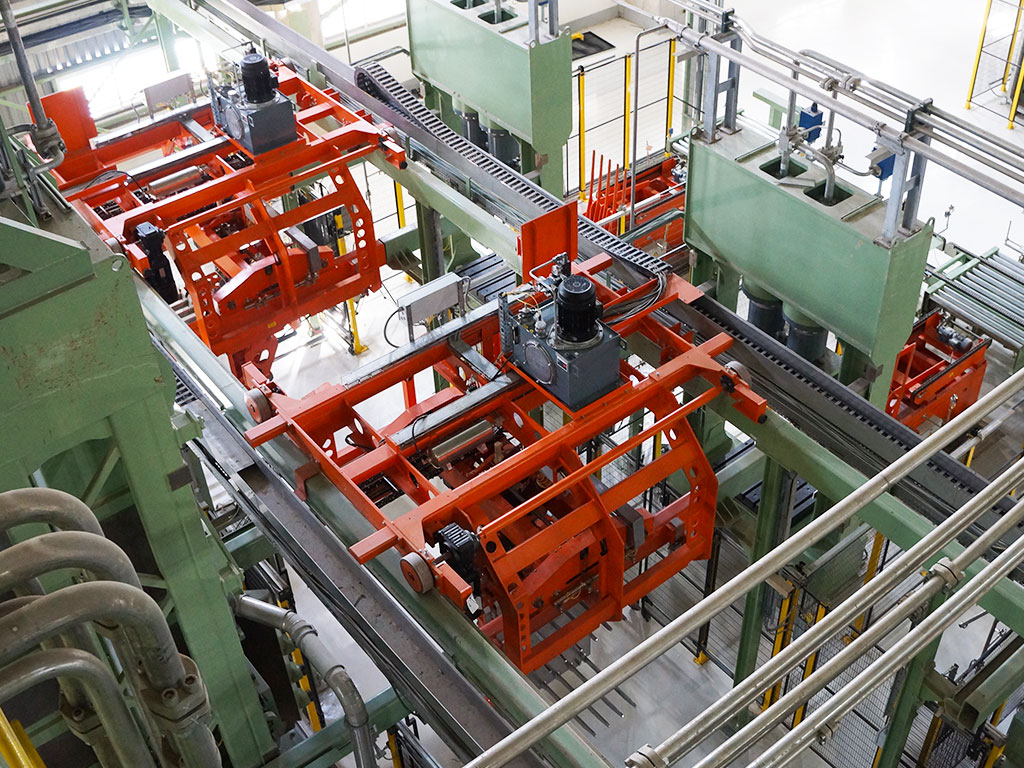

Transfer Fork Uni-Fork – Automated Bale Transfer System

The Transfer Fork Uni-Fork from AUTEFA Solutions is an innovative robotic bale transfer system designed to optimize fiber baling processes, increase production capacity and improve operational efficiency. This flexible automation solution connects multiple pre-presses and main presses, enabling efficient coordination of several independent fiber production lines.

At the heart of the Uni-Fork concept is a robotic transfer fork that transports pre-compacted fiber bales between one or more pre-presses and main presses. Cut staple fibers from independent production lines are fed into separate pre-presses, where they are compacted and prepared in press boxes for transfer to the main baling presses.

Depending on production capacity and redundancy requirements, additional main presses can be integrated into the system. This modular configuration allows manufacturers to optimize equipment utilization, reduce bottlenecks and adapt their fiber baling operations to changing production demands.

The Uni-Fork can be integrated with the AUTEFA Solutions Nonstop-Ultra Single Box Baler. For fully automated bale packaging, AUTEFA Solutions offers the Intra Power-Wrap or the Ad-Wrap.
